Water Propelled Tube Cleaners and Accessories Water Propelled Tube Cleaners and Accessories
SOS Patented and Design Registered Tube Cleaners

Our range of Water Propelled Tube Cleaners should satisfy all your tube cleaning needs :-

Benefits of the SOS Metal Bladed Tube Cleaner.

Overlapping blades with well rounded blade arc ends have been designed to suit internal surface of tubes and ensure that full surface of tubes comes in contact with cleaner blades.

Can be used repetitively. They have been used for condenser cleans more than 15 times and have remained in reasonable condition.

Phosphor Bronze Tube CleanersPhosphor Bronze Tube CleanersThe SOS PBTC was developed to satisfy the need of power plant owners of aged condensers. They require an efficient type of cleaner that would not damage the tubes, yet, clean better than rubber or plastic cleaners. Phosphor Bronze spring grade was selected being less than half as hard as spring steel.
Steel Tube CleanersSteel Tube CleanersThe SOS STC was developed to satisfy the need of power plant owners of aged condensers. They require an efficient type of cleaner that would not damage the tubes, yet, clean better than rubber or plastic cleaners. Phosphor Bronze spring grade was selected being less than half as hard as spring steel.Steel Bladed Tube Cleaners were developed because of the demand to clean tubes with harder type deposits. For use in Titanium and Carbon Steel tubes The steel blades are hardened and tempered b
Plastic Tube CleanersPlastic Tube CleanersComplete internal circumference of the inside of the tube is presented to the self adjusting cleaning ring. For light duty. Light for easy cartage. Just wash off with clean water and they are ready storage or use again. Cleaning rings can be replaced for even more savings. Tail end removes any debris that is left in the tube.

For more information the following "PDF" files can be downloaded. Acrobat Reader is required.

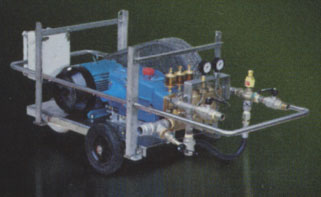

Pump System -1

Pump System -1
  • Incorporates CAT frame 35 pump.

  • 10hp Three Phase Electric Motor or Air motor for fire hazard areas

  • Inlet Filter for Pump Protection.

  • Inlet and Outlet Oil Filled Pressure Gauges with dampening Needle Valve for Accurate Pressure Readings.

  • Pressure regulating Valve for Water Gun Pressure Control.

  • Forward / Reverse Starter for correct pump drive rotation.

  • Stainless Steel and Brass Fittings and Valves.

  • Stainless Steel Trolley for maintenance free long life.

  • Two Puncture Proof Roller Bearing Rubber Wheels & one Swivel Stainless Steel Wheel for Direct Steering.

Pump System -1 for SOS Tube Cleaners

Pump System -1 for SOS Tube Cleaners

Pump System -1 for SOS Tube Cleaners
Click to enlarge image(s)
For reliable job completion on time every time our Pump System -1 should be used to "shoot" our Tube Cleaners.
Specifications
Power Requirements 7.5kW (10hp)
Water Supply Requirement Flooded to 4.9BAR (70PSI)
Water Consumption 87 L/M (23 US GPM)
Output Pressure 14-28 BAR (200-400PSI)
Dimentions 155cm x 70cm x 69cm (61" x 28" x 28")

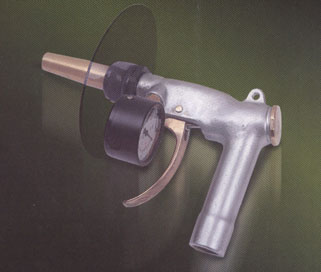

Water Gun (WG-1)

WG-1
  • Made from High Tensile Cast Aluminium

  • Brass nozzles available for tubes ¾", 7/8", 1", 1-1/8" & 1-1/4" OD

  • Brass nozzles are interchangeable. Can be easily removed and different size nozzle fitted.

  • Clear polycarbonate Splash Guard. The Tube plate is still visible through the Splash Guard.

  • Inlet water connection has a live swivel which is active under operating water pressure.

  • Pressure gauge indicates when water pressure is in the tube and the pressure drops when the cleaner exits the tube, thus allowing the operator to release the trigger.

  • As water shuts off, vacuum breaker immediately opens preventing return of water slug and thus eliminating vacuum kick backs.

  • Delrin Valve Seat and Brass bush for valve stem and other parts are replaceable.

Water Valve for firing SOS Tube Cleaners

Water Valve for firing SOS Tube Cleaners

Water Valve for firing SOS Tube Cleaners
Click to enlarge image(s)
The Water gun with a clear splash guard guarantees every "shot" gives the very best result every time.
